Vico Ultima 48 Frame Pum Impeller
Vico Ultima & Ultra Flow Impeller



Alternative Views:


Competitor Price: $43.12
Spapartsnet Price: $34.95
Savings: $8.17


Product Code: VI-ULTIMA-IMP


Ultima Impeller HP:


Qty:
Description

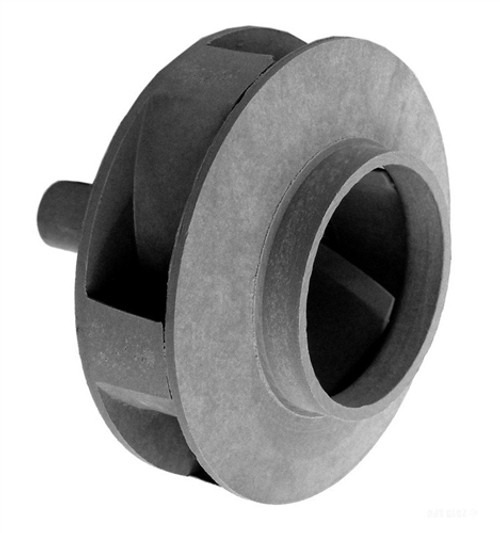

Impeller for the Vico Ultra Jet Series Ultima pumps and wetends made by Balboa Water Group (Formerly Vico). The impellers work with all model wetends, regardless of discharge position or union size. Horsepower can be determined by colored rings on the impeller sleeve (see color code below). It is recommended that you change your shaft seal along with this impeller. Two shaft seals were used depending on the year the most common is the newer seal, Product Code: PS201. The other possibile seal is the older Product Code: PS2136, which was used mostly on Ultra Flow versions.

Color Coded Rings Key

  • Gray = .75 HP
  • Black = 1.0 HP
  • Red / Green = 1.5 HP
  • Red = 2.0 HP
  • Red / Black = 3.0 HP
  • Black / Green / Red = 4.0 HP
AKA/Replaces: PPUF7IMP, PPUF1IMP, PPUF15IMP, PPUF20IMP, PPUF30IMP, PPUF40IMP, 1212207, 1212205, 1212215, 1212218, 1212225, 1212221, 1212219, 121224, 1212241, PPUL10IMP, PPUL15IMP, PPUL31IMP, PPUL41IMP, PPSF10IMP
