TheraFlo 2.0 HP (4.0 BHP/SPL) Pump Assembly Sundance & Jacuzzi
TheraFlo 2.0 HP (4.0 BHP/SPL) Pump Assembly Sundance & Jacuzzi



Competitor Price: $562.12
SpaShopper Price: $381.95
Savings: $180.17

Product Code: SUN-TFLO2-PA
Qty:

Description

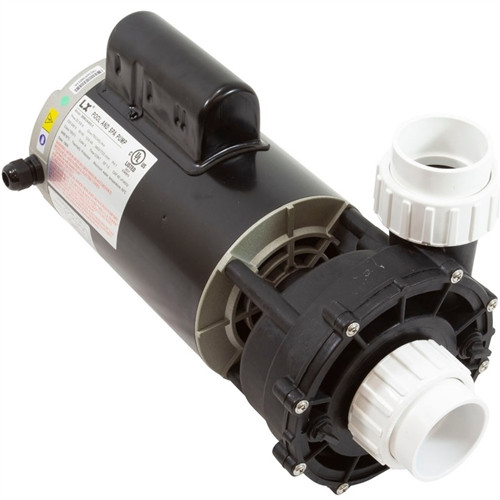

Unique, Universal Replacement spa pump for Sundance Spas, Jacuzzi, Blue Ridge Spas, Gatsby Spas and Sweetwater Spas that use this special TheraFlo pump. This pump has the ability to rotate the discharge to any unique position. In the photo, it is rotated to the 1:30 position but can be rotated to other positions, including the 12:00, 3:00, 1:30 and 9:00 to accommodate multiple plumbing configurations. In a typical Sundance, Sweetwater or Jacuzzi Spa application, the left side pump will be either 12:00, or 9:00, and the right side pump will be at the 1:30 position.This pump will adapt perfectly to either side and will also replace single speed versions, just wire the high speed only.

TheraFlo Features:
  • 2.0 HP (4.0 HP Uprated)
  • 230 Volt, 10.5 Amp (Replaces all previous values)
  • 48 Frame Motor
  • 2 Speed (RPM = 1725/3450)
  • Welded Mount
Used on Sundance & Jacuzzi Models: Maxxus, Optima, Cameo, Majesta, Altamar, Marin, Capri, Hamilton, Chelsee, Certa, Palermo, Bahia, Optima, Telluride, Caprio ST, Calypso I & II, Portofino Series, Sweetwater Spas, J-325, J-330, J-335, J-340, J-360, J365, J-370, J-375, J-380, J-385, J-345, J350

Replaces pump models: 6500-768, 6500-762, 6500-260, 6500-761, 6500-261, 6500-254, 6500-263, 6500-268, 6500-760, 6500-269, 6500-266, 6500-262, 6500-264, 6500-257, 6500-265

Please Note: If your motor has a separate mounting bracket it will need to be removed, as this pump has it's own welded bracket. Power cord is not included with this pump assembly, you would purchase a new one or transfer your existing one.
